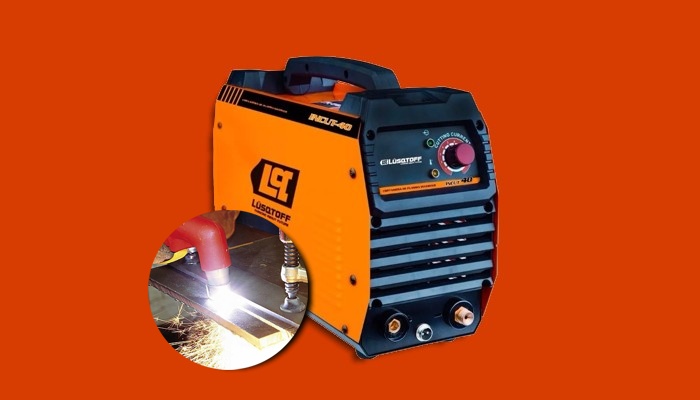

The inverter plasma cutters from Lusqtoff’s INCUT series are known for providing an excellent plasma arc of extremely high temperature, thanks to their IGBT power source with a high voltage of 91V.
The concentration of arc heat (compression) is used for the partial melting of the metal, and the air jet continues the cut through a process similar to oxy-fuel cutting, i.e., by oxidizing the material. This melts and removes the material, forming narrow incisions.
This cutting method is widely used in the industry for its versatility and ease of automation, competing with laser and water jet cutting but at a significantly lower cost in equipment and maintenance.
The adoption of IGBT technology as the main electronic power module allows excellent current flow control, along with a high level of reliability and robustness.
Using a 40KHZ inverter frequency significantly reduces the weight and size of the main transformer, improves equipment efficiency and power factor, resulting in significant energy savings. This frequency also almost completely eliminates noise pollution.
| Input Power | AC220V |
| Current Power (A) | 20.6 |
| Input Power (KW) | 4.5 |
| Power Factor | 0.89 |
| No-Load Voltage (V) | 235 V |
| Input Frequency | 50/60 |
| Cutting Current Range (A) | 15-35 |
| Rated Output Voltage | 245 V |
| Rated Duty Cycle | 35% |
| Efficiency | 85% |
| Protection Type | IP21S |
| Cutting Thickness (mm) | 8 |
| Air Pressure | 0.4-0.5 MPA |
| Gas Flow | 250 L/min |
| Weight | 7 Kg |
| Dimensions | 425*156*275 |
| Insulation Class | H |
If you need more power to cut thicker materials, check out its bigger siblings, the INCUT-70 and INCUT-100. Lusqtoff offers a total of 3 plasma cutter models:
The following video, courtesy of @faustocav1, shows how easy, fast, and quiet it is to cut a 2mm sheet with the INCUT-40:
