SEG Introduces Its New Motor with External Panel

The Brazilian company has accustomed us to innovation and excellence in its products, along with an excellent price-to-quality ratio.

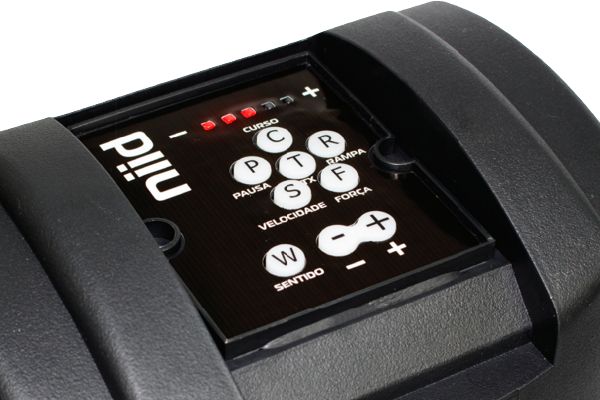

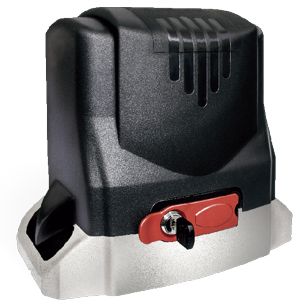

This time, they present the revolutionary SOLO Niid motor for automating sliding gates. The first innovation is its external programming keypad. You no longer need to disassemble the unit to perform that tedious and unintuitive programming directly on the board. This model allows programming externally, making it much easier and more understandable.

In addition to saving time, you will notice a significant reduction in installation effort, as it is a lightweight product, easy to assemble, and at the same time, safer and more efficient.

Its locking system prevents changes to the programming without using the product key. The keypad automatically locks if it is not unlocked manually.

Although this model is robust and powerful, it is designed for residential use. It supports gates weighing up to 600 kilograms.

TECHNICAL SPECIFICATIONS

• RESIDENTIAL/COMMERCIAL use
• Power supply: 127V/220V - AUTOMATIC BIVOLT
• NIID Control Unit
• Model: 100W 170V DC
• Cycles: 70/hour
• Opening time: 6 SECONDS (3-meter gates)
• Gates up to 600kg

What Can Be Configured with the Keypad?

• FORCE – Adjust the motor”s force.
• SPEED – Adjust the motor”s speed.
• RAMP – The gate slows down before reaching the limit switch.
• PAUSE – Automatic closing.
• FCA/FCF – Opening and closing limit switches.
• TX – For recording and deleting the remote control.
• TRAVEL – For setting the opening and closing travel time.
• DIRECTION – To indicate which side the closing stop is on.
• The LED line indicates the adjustment level or function monitor.
