Designing Stairs - Calculations and Standards

PDF guide on calculations for designing stairs correctly, including safety and ergonomic standards.

Compartir

  Twitear

   Enviar

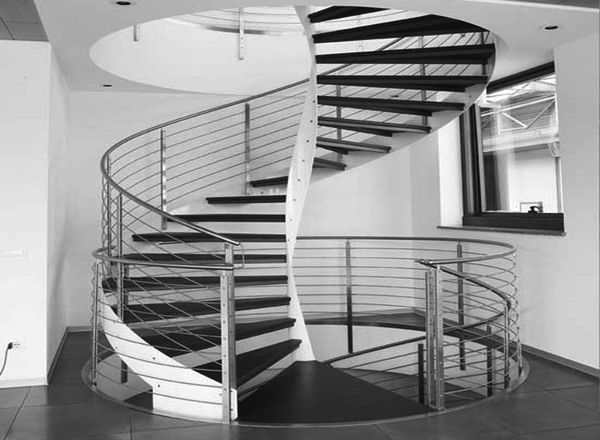

A staircase is essentially composed of a series of steps, which in turn consist of a tread (the horizontal part) and a riser. Several factors can improve the comfort of a staircase, such as the slight extension of the tread over the lower step, which increases the stepping surface without altering the overall dimensions of the staircase.

DIN 18064-65

The following file details the DIN 18064 and 18065 standards on architecture, ergonomics, and safety:

Download: Stairs.pdf

Stair Calculation and Layout

The following file was developed by Juan José Suárez for the Santa Lucía Institute in Cartagena and specifies how to obtain the optimal measurements for each step.

Download: stair-calculations.pdf

This work by Juan José Suárez from I.E.S. Santa Lucía excellently summarizes how to perform calculations for stair design, the ideal ascent module, and technical considerations for different types of stairs.

It also includes examples for the formal plan’s graphical presentation.
